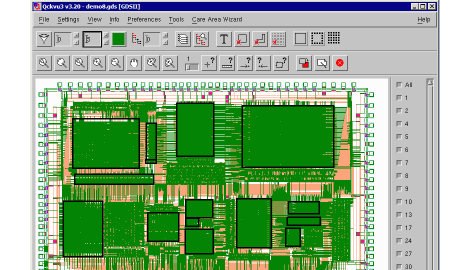

Artwork QCKVU3

Artwork QCKVU3

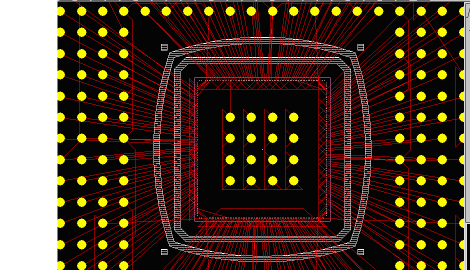

Artwork Fa3st

Artwork Fa3st

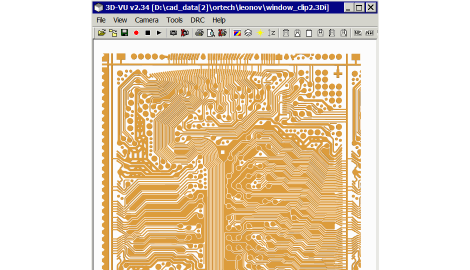

Artwork Gerber Union

Artwork Gerber Union

Artwork Conversion Software entwickelt CAD-Übersetzer, High-Speed-Viewer und hochauflösende Vektor-zu-Bitmap-Rasterizer für CAD-Formate wie GDSII, Gerber, DXF, MEBES, OASIS, ODB++ (und mehr) für die Masken-Erzeugung, Formatwandlung oder Ausgabe auf Desktop-oder Großformat-Drucker und Plotter.

ACS bietet auch Schnittstellen-Tools für Simulation-Software wie ANSYS, AWR, CST, Keysight EDA und andere. Exportiert 2D/3D-Daten aus Ihrem PCB-System, so dass diese in Tools wie ProEngineer, SolidWorks, AutoCAD und andere geladen werden können.

Die Highlights:

Gerber/RS-274X Tools

GBRVU
View and plot Gerber (RS274D, RS274X and MDA) data. GBRVU has one of the best plotter drivers of all available viewers. Windows and UNIX.

GDSII/OASIS Tools

ASM3500
A bidirectional translator between AutoCAD's DXF database and Calma's GDSII stream data base used for integrated circuit design and layout. It is very robust and sophisticated and includes functions such as line linking and polygon verification.

AutoCAD Tools

ASM 500 Family
Translator between AutoCAD's DXF file format and Gerber photoplotter code. Also included is a reverse translator from Gerber to DXF and a powerful Gerber viewer and plotter. Three versions are available with different feature sets and prices.

Neueste Produkte:

Lightweight DRC (October 1, 2013)

Lightweight Design Rule Checker for Package Designers


New low cost lightweight DRC for package designers: BGA, RDL, MCM
