Attenuator Assemblies

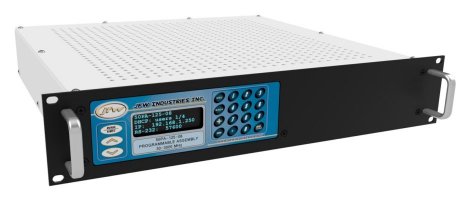

19 Inch Rack with 50 Ohm Step Attenuators

19 Inch Rack with 50 Ohm Step Attenuators

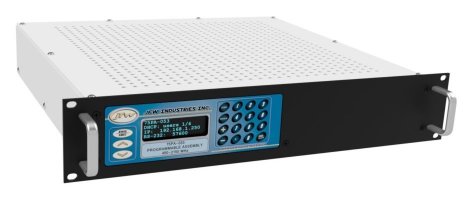

19 Inch Rack with 75 Ohm Step Attenuators

19 Inch Rack with 75 Ohm Step Attenuators

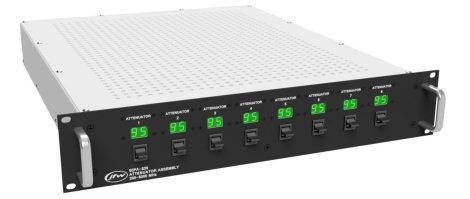

19 Inch Rack with 50 Ohm Manual Lever Controls

19 Inch Rack with 50 Ohm Manual Lever Controls

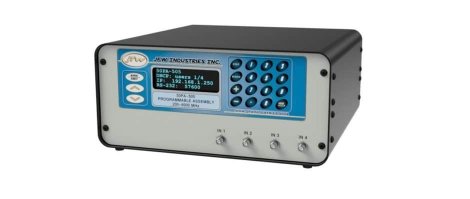

Benchtop with 50 Ohm Step Attenuators

Benchtop with 50 Ohm Step Attenuators

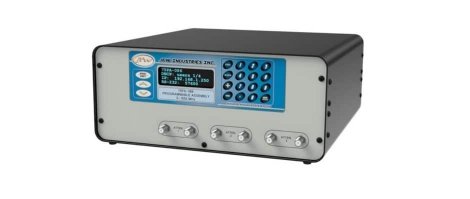

Benchtop with 75 Ohm Step Attenuators

Benchtop with 75 Ohm Step Attenuators

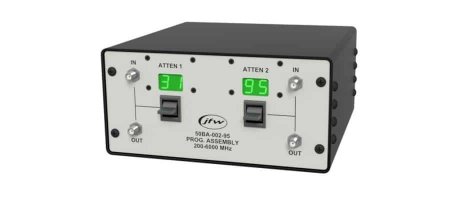

Benchtop with Manual Lever Controls

Benchtop with Manual Lever Controls

The standard RF attenuator assemblies are available in either 19 inch rack mount or benchtop enclosures. Each attenuator can be controlled individually (set attenuator command) or as a group (block command, set block command). The manual control can be either keypad or manual lever control.

Manual Keypad Features
The RF attenuator assemblies with keypads are remotely controlled via Ethernet/Serial. The IP settings can be viewed and updated from the keypad. The current Baud rated is also displayed.

Manual Lever Features
The lever switches allow for manual control of each individual attenuator. The lever switches are momentary so that you can “tap to step” or “hold to jog”. Each lever is paired with a display that shows the current dB setting. As the dB settings are changed manually or remotely, the display updates with the new dB setting values. As a remote script is executing, all dB setting changes can be easily observed.
