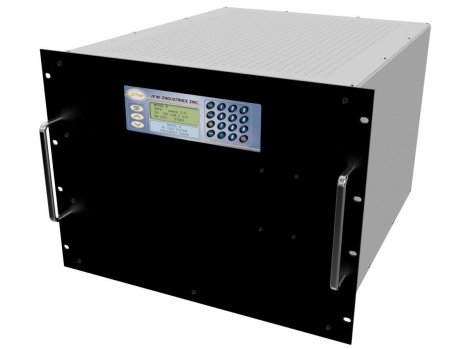

Full Fan-out Handover Test Systems

This type of fan-out provides connections for multiple handsets and multiple network access points. The RF signal between each handset and each access point can be faded up/down. The full fan-out handover test system is constructed with power divider/combiners on both halves of the matrix with a step attenuator on every path through the matrix. Every RF path through the matrix can have its own unique attenuation setting.

4×4 Full Fan-out Handover System: 16 step attenuator, 16 RF through paths
8×8 Full Fan-out Handover System: 64 step attenuators, 64 RF through paths

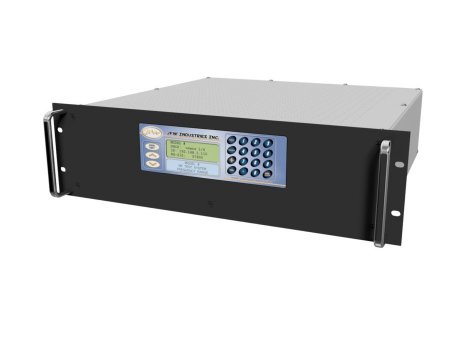

Limited Fan-out Handover Test Systems

A 4×1 limited fan-out has connections for a single handset and four network access points. The internal step attenuators can fade the RF signal from each access point to the handset. The limited fan-out handover test systems are constructed with a step attenuator on each input port with a power divider/combiner to combine all signals onto a common path. This design limits the number of step attenuators to be equal to the number of input ports.

4×1 Limited Fan-out Handover System: 4 step attenuator, 1 RF through path
8×1 Limited Fan-out Handover System: 8 step attenuators, 1 RF through path

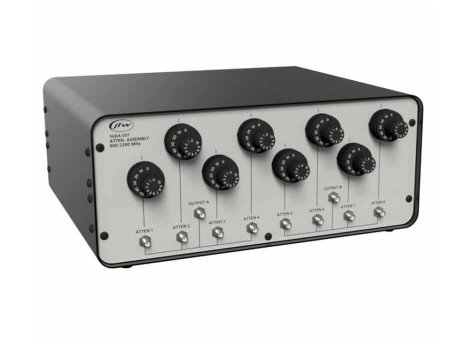

Manual Handover Test Systems

Full fan-out or limited fan-out configurations but with manual step attenuators. These models require no AC power.
