JFW präsentiert 19" Phasenschieber-System

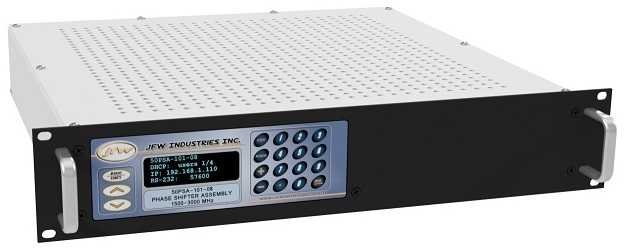

JFW model 50PSA-101-XX is a programmable phase shifter assembly with range 0 – 358.6° by 1.4° steps. The center frequency is user selectable from 1.5-3.0 GHz. It has a 2RU high 19 inch rack mount enclosure. It is available with up to 8 individually controlled phase shifters.
- data sheet and outline drawing
- 0 to 358.6° by 1.4° steps
- Center frequency range from 1.5 GHz to 3.0 GHz
- Each phase shifter can be assigned a different center frequency
- Available with 1 to 8 individually controlled phase shifters
- SMA or N female RF connectors
- Ethernet, Serial, and Manual controls
- Uses DHCP for easy network setup
- 19 inch rack mountable chassis Alle Neuigkeiten
